1, Overview

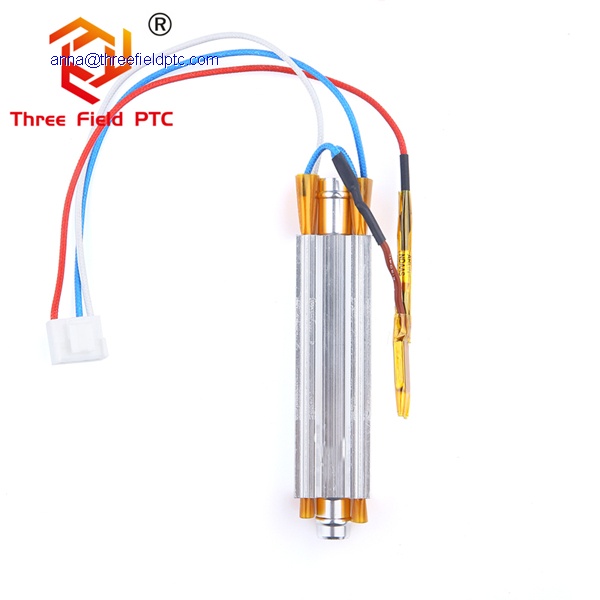

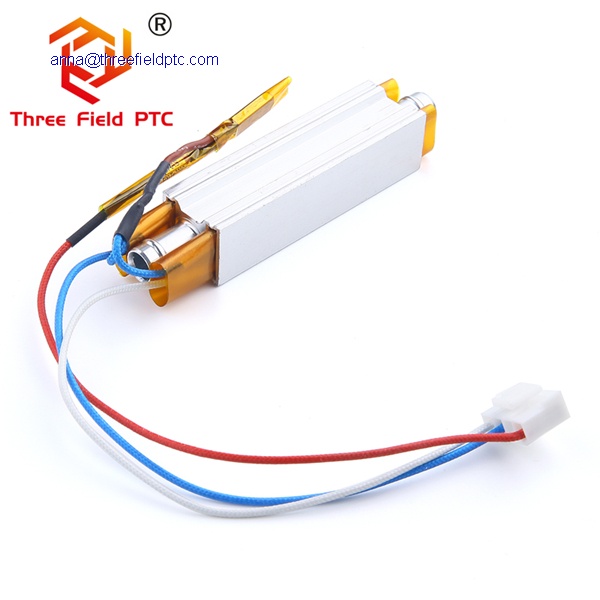

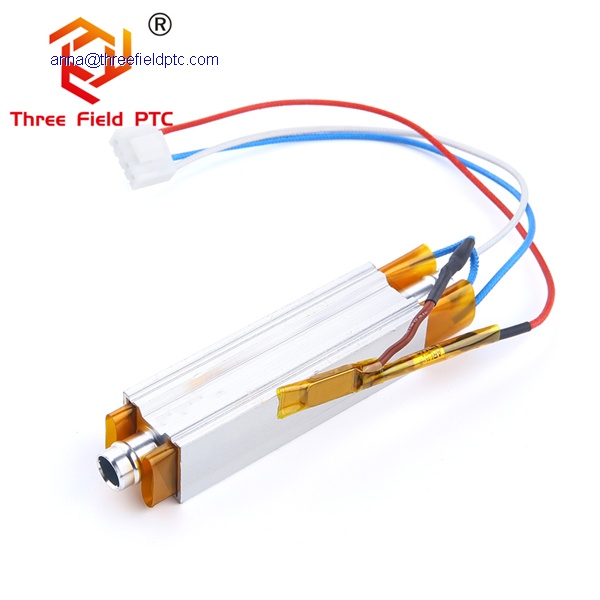

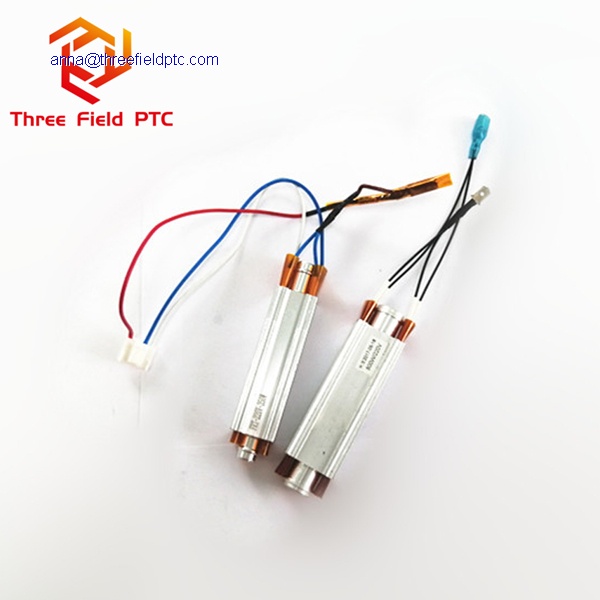

Pipe-type PTC water heater is a kind of heating product for foot massager, mainly used in the high-level of foot massage for cycle heating, aromatherapy machine, face steamer and so on. Unlike another traditional heating material such as quartz glass tube, it is easy to fit and not easy to damage even when used without water. It has long service life. In addition, the external dimensions can be customized according to the actual installation dimensions of customers, the power range is 200-1000w, and the voltage range is 120-240V.

Remarks: for better heating transfer, the pipe type PTC water heaters need to be pressed by hydraulic press machine in a suitable forth, so it close to the PTC heating element tightly. It close to the PTC tightly but it doesn’t destroy the PTC parts.

Another point is as the speciality of structure, the power testing equipment of this kind of PTC heater must be specially designed. As we know, only few manufacturers have this kind of power testing machine. We have the ability to design and produce these equipment by ourselves.

2, Basic specifications

Tube: the sample size is 81*23.5*20mm

Voltage: the sample voltage is 220V, it can be customized.

Surface Temperature range: 50-260 ℃

Water temperature: 35-80 ℃

Power: the sample power is 250W, it can be customized.

Temperature: 150 °C, can be customized.

Water flow: 0.15L/min

Weight: 140g/pc for the sample PTC heating element.

Material: aluminum tube, PTC thermistors, Copper electrode sheet, insulating film.

Operating life: up to 1,000 times

Assemble method: a pair of metal electrodes with leads. hydraulic pressure

If our client need drawing of these PTC heating elements we are glad to provide it.

3 Features:

3.1 It can generate heat at constant temperature without additional temperature control device.

3.2 It has high insulation strength, good safety and reliability, wide range of voltage.

3.3 It has long service life. Its heating is sustainable and its power is stable.

3.4 It can heat up liquid fast.

3.5 In addition, the size of insulating film PTC heater is flexible, various models and specifications can be customized according to the actual needs of customers.

4 The applications of Pipe-type PTC water heater.
It is specially designed for applications in the field of liquid heating, such as foot massage for cycle heating, aromatherapy machine, face steamer, shower, ducking bath, washing hand, vegetable and dish, drink warmer and boiler, vapor generator. etc.

We support client to actively expand new applications of PTC heating element, ODM projects are warmly welcomed.

5. Our company’s advantages in this industry:

5.1 We have an experienced engineer technical team, which can design different types of heaters according to customer needs. The design content includes product frame, wiring mode, ceramic chip formula, power, temperature control, etc.

5.2 Our company has rich relevant production equipment, such as glue dropping print machines, glue rolling print machines, terminal adding machines, power on curing machines, power testing machines, etc. These equipment ensure the production capacity and technical level of our company. 100% of our products accepted some testing before shipment, such as insulation test (optional), power test, high voltage resistance test, etc.

5.3 We have equipment design and production capacity, can develop new equipment for different products according to customer requirements. We can improve the production efficiency and share economic benefits with our customers.
