1. Overview

What’s a surface charged corrugated PTC heater?

In the field of PTC heater, the most widely used and cost-effective heater should be the surface charged corrugated heater series. It perfectly replaces the traditional electric heating wire heating. This surface charged corrugated heater has a very huge market, and the market demand is growing at a rate of more than 10% every year.

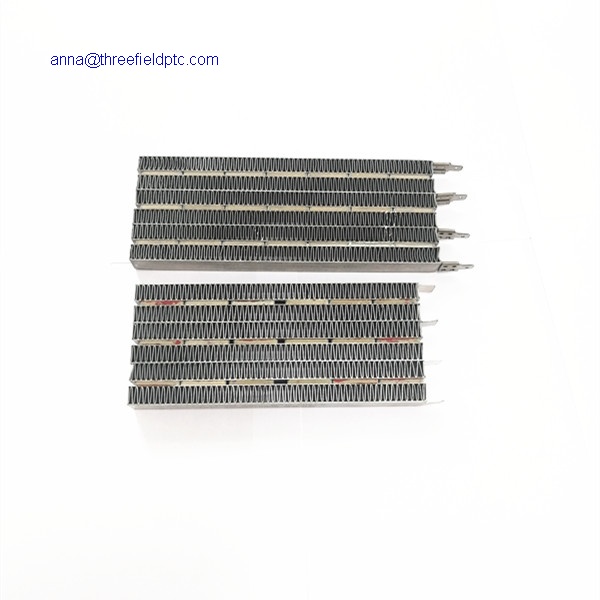

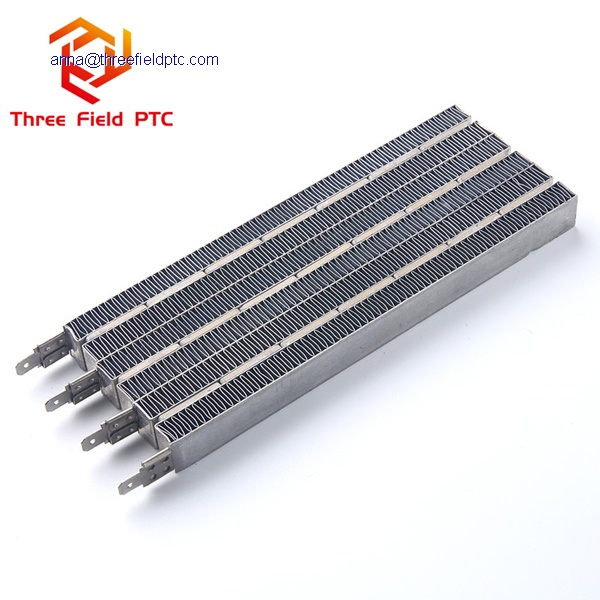

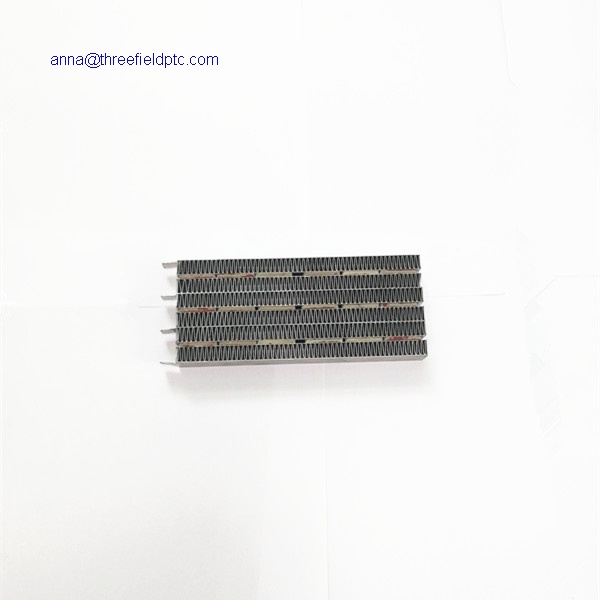

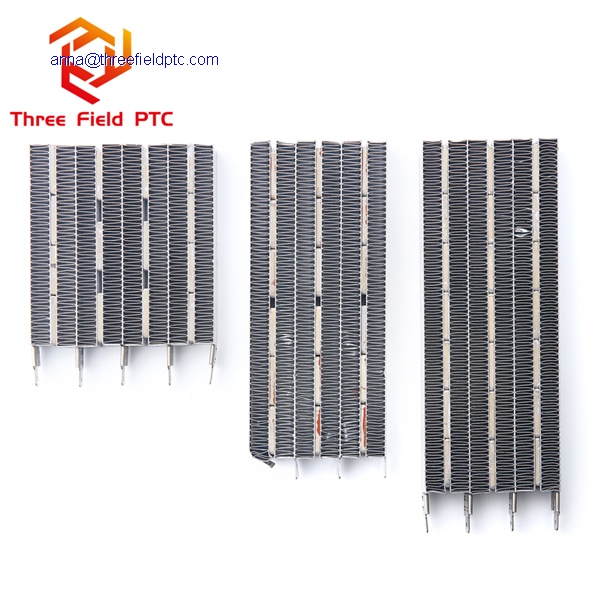

Conductive corrugated PTC heater is a kind of high-power PTC heater. Corrugated radiator is pasted on both sides of common PTC element, and corrugated hole can supply hot air. PTC Insulated Ripple heating element are dynamic heating elements designed to heat up moving air. The large surface area of the aluminium fins ensures a homogeneous heat transfer adjusting the air volume flow.

2. Specifications of PTC surface charged PTC heater
Below chart are the paramaters of PTC heating element items in 15mm thickness.

No	L*W*T (mm)	Customizable Voltage Range	Related Power	Customizable power range
1	48*66*15	100～240V	600W	50～900W
2	72*66*15	100～240V	900W	50～1350W
3	96*66*15	100～240V	1200W	100～1800W
4	120*66*15	100～240V	1500W	100～2250W
5	166*66*15	100～240V	1800W	100～2700W
6	168*66*15	100～240V	2100W	100～3150W
7	192*66*15	100～240V	2400W	100～3600W
8	216*66*15	100～240V	2700W	100～4050W
9	240*66*15	100～240V	3000W	100～4500W

Below are the paremeters for items in 24mm thickness.

No	L*W*T (mm)	Customizable Voltage Range	Related Power	Customizable power range
10	30*66*24	100～240V	450W	50～600W
11	45*66*24	100～240V	675W	50～900W
12	60*66*24	100～240V	900W	50～1200W
13	75*66*24	100～240V	1125W	100～1500W
14	90*66*24	100～240V	1350W	100～1800W
15	105*66*24	100～240V	1575W	100～2100W
16	120*66*24	100～240V	1800W	100～2400W
17	135*66*24	100～240V	2025W	100～2700W
18	150*66*24	100～240V	2250W	100～3000W
19	165*66*24	100～240V	2475W	100～3300W
20	180*66*24	100～240V	2700W	100～3600W
21	195*66*24	100～240V	2925W	100～3900W
22	210*66*24	100～240V	3150W	100～4200W
23	665*66*24	100～240V	3375W	100～4500W
24	240*66*24	100～240V	3600W	100～4800W
25	255*66*24	100～240V	3825W	100～5100W
26	270*66*24	100～240V	4050W	100～5400W

More details about the ripple PTC heating element in 66mm width.

Item	Description
Material	PTC thermistors and aluminium strips, joined with soldering and gluing.
Dimension	Check the dimension sketch map and specification. For the same width of PTC heater, the length can be customized.
Rated voltage	Can be customized, the range please check the specification.
Rated power	Can be customized, the range please check the specification.
Withstanding Voltage	The withstanding voltage test will input 2 times of related voltage to the PTC heater for a minute.
Inrush current	It is about 1.5-2 times of related current when power on for about 10-15 seconds.
Power supply	AC electricity
Assembly mode	Reserve 4 pcs of 250 terminals, usually set up to output 3 gears of power. It is plug-and-play. The other options include making outgoing fire resistance wires or making a frame of heat resistant plastic. We have engineer team who can help client to design how to assemble the PTC heater to the finished heater.
Wires	Usually use fire resistance wire or Teflon wire.
Wires length	Can be customized according to client’s need
Surface charged	Yes. We also have surface uncharged models.
PTC thermistors surface	This model we don’t deal with its surface. Can make PTC thermistors been covered with a layer of thick dropped glue, so it is better on dust-proof and moisture-proof. The cost increasing is about us$0.08/pc.
Temperature	The highest temperature of the heater body is 280℃, the highest temperature of the heated air is 130℃. It doesn’t have light fire.
Temperature control	This heater doesn’t have temperature limiter. For safety consideration, we can add it to the PTC heater, the PTC heater need a plastic frame to fix the sensor.
Package	Bubble bag, can be customized

3. The features of surface charged corrugated heater series.

3.1 Its price is not expensive compared with the whole heater. It is an economical heater style.

3.2 Easy installation, plug-and-play, fast temperature increase

3.3 No oxygenation and open flame, secure and comfortable use. Quiet operation, and do not generate RFI noise.

3.4 It has a virtually unlimited service life, the service life is up to 100,000 hours.

3.5 Automatic adjustment to maintain balanced and continuously heating. When the temperature is too high, it will automatically reduce the power, reduce the heating and keep the temperature constant. High operational reliability and energy efficiency without any additional switching elements.

3.6 Product size, voltage, power, temperature and other parameters can be customized.

4. The possible applications of surface charged PTC heaters.

Due to its own features, the surface charged PTC heater are most commonly used as pre- or post-heaters in air conditioning. As it is surface charged, it mainly been used in relative dry and clean environment And it should be well isolated with conductive objects. The most common usage is home use air heater and clothes dryer, or industry dryer.

5. Our company’s advantages in this industry.

5.1 We have an experienced engineer technical team, which can design different types of heaters according to customer needs. The design content includes product frame, wiring mode, ceramic chip formula, power, temperature control, etc.

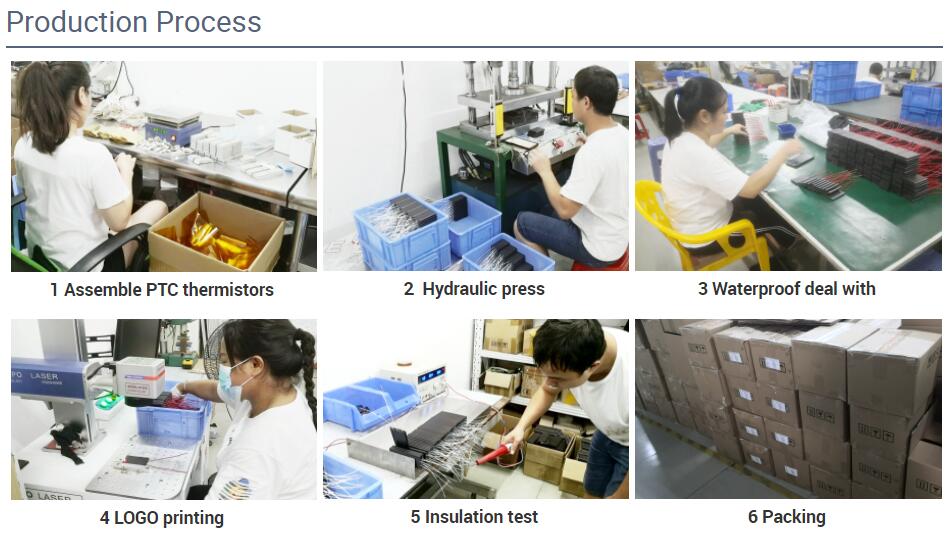

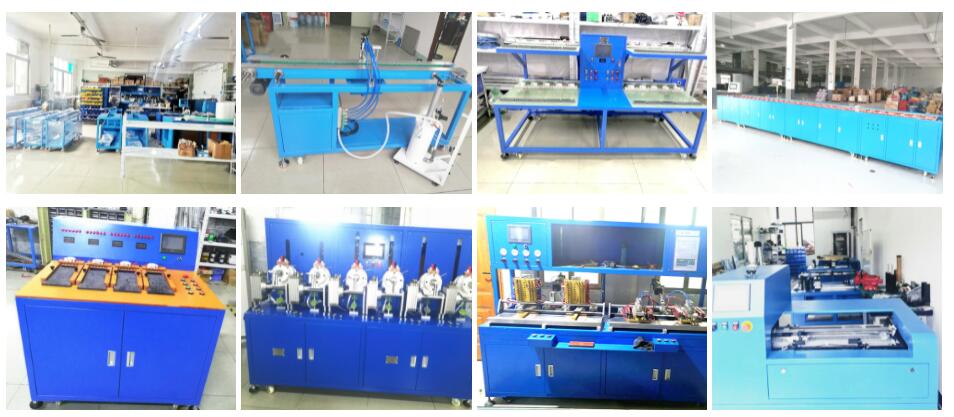

5.2 Our company has rich relevant production equipment, such as glue dropping print machines, glue rolling print machines, terminal adding machines, power on curing machines, power testing machines, etc. These equipment ensure the production capacity and technical level of our company. 100% of our products accepted some testing before shipment, such as insulation test (optional), power test, high voltage resistance test, etc.

5.3 We have equipment design and production capacity, can develop new equipment for different products according to customer requirements. We can improve the production efficiency and share economic benefits with our customers.
