ODM Supported Braking Resistance Aluminium Shell Risistor Different Size and Resistance

ODM Supported Braking Resistance Aluminium Shell Risistor Different Size and Resistance

Product No.：SY-RA-001
Dimension：Different dimensions
Material：Different size
Power：50w-6000w
Resistance：Yes
Insulation：Aluminium, Sand
Quality Warranty：3 years
Net Weight：Up to the power of the resistance
Package：Paper box
Online Inquiry

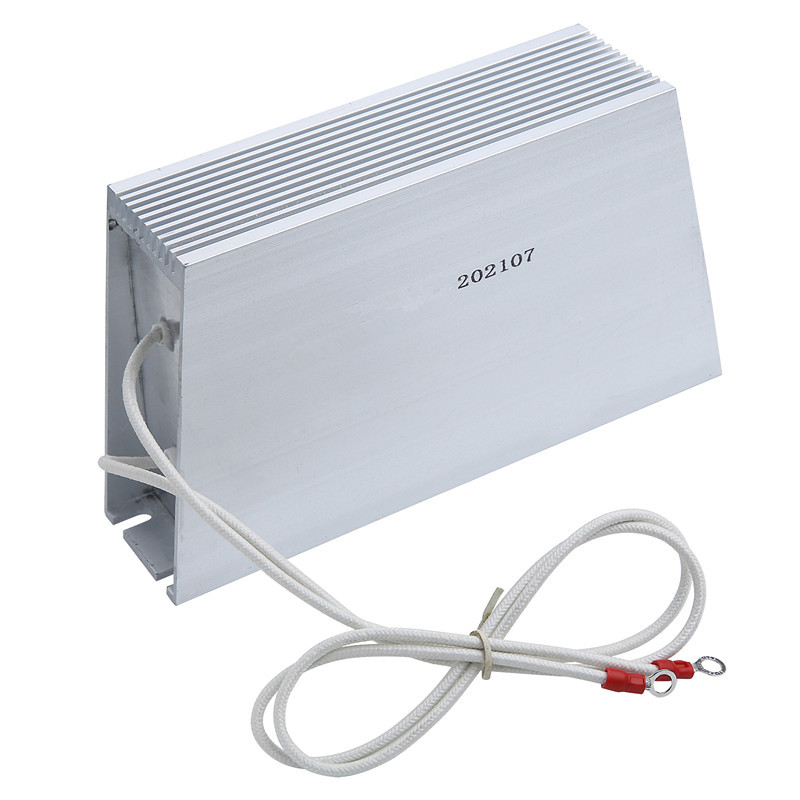

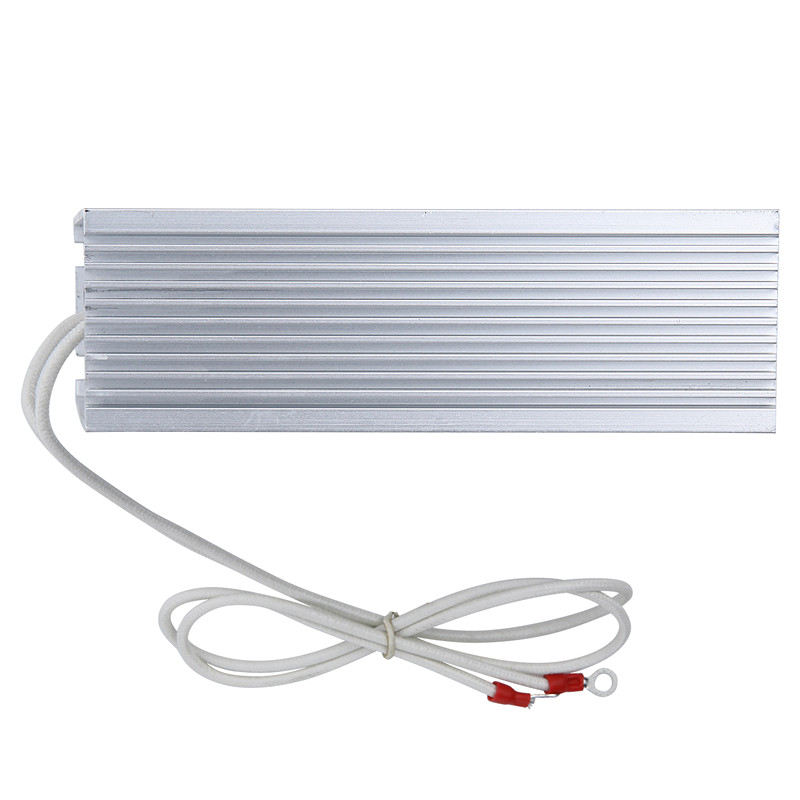

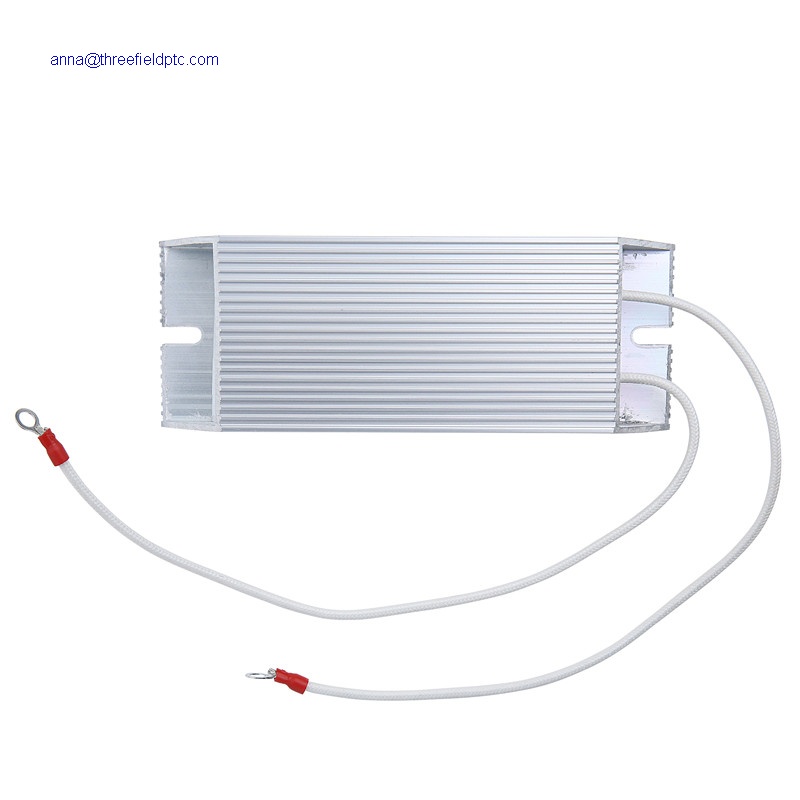

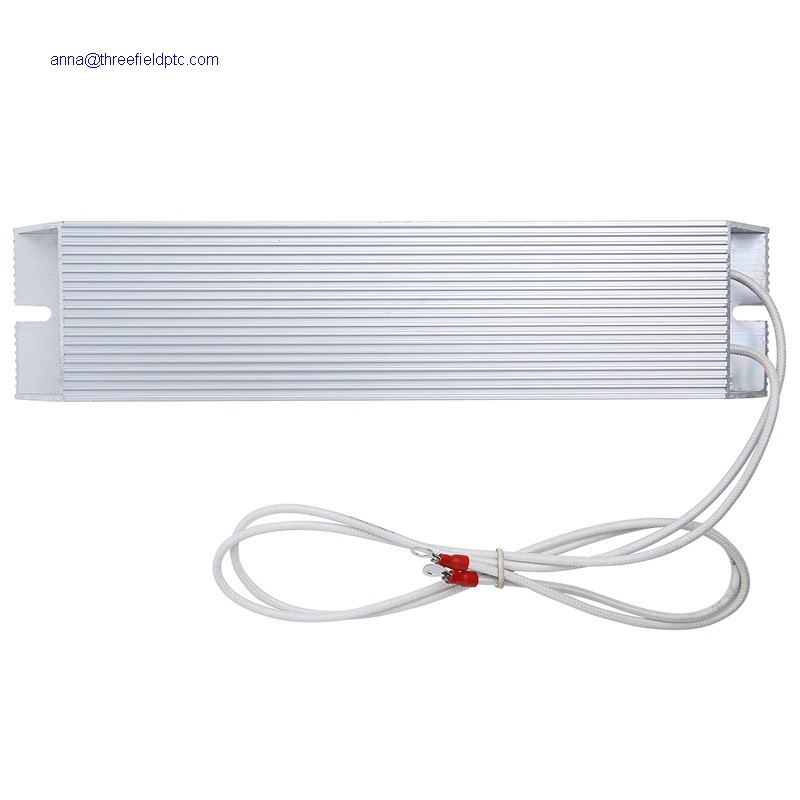

Aluminium shell resistor, Braking Resistance Aluminium cover
Power arrange: 50w-6000w

Resistance range: 1.0 Ω - 20K Ω

Product Description: aluminium shell resistor weather resistance, vibration resistance, safety, superior to the traditional ceramic frame resistor.

Easy to install tightly and attach radiator.

Scope of application: widely used in power supply, inverter, servo system and other high requirements of the electrical circuit, and can be applied to harsh industrial control environment.

Specifications:

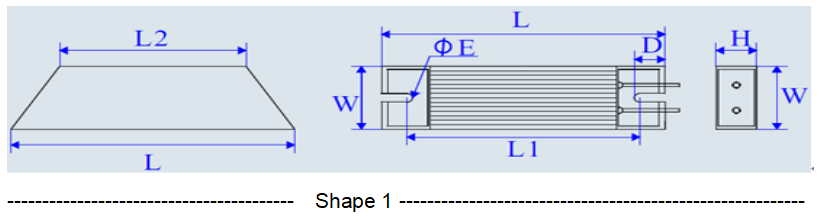

Power	Shape	Dimension (±5mm)							Applicable cable（㎡）	Lead length（mm）
Power	Shape	L	L1	L2	W	H	D	E	Applicable cable（㎡）	Lead length（mm）
50W	Shape 1	100	80	65	40	20	10	5	1.0	300
80W	Shape 1	115	95	80	40	20	10	5	1.0	300
100W	Shape 1	140	120	105	40	20	10	5	1.0	300
150W	Shape 1	165	145	130	40	20	10	5	1.0	300
200W	Shape 1	165	155	110	60	32	10	5	1.5	300
300W	Shape 1	215	200	160	60	32	10	5	1.5	300
400W	Shape 1	240	225	180	60	32	10	5	2.0	300
500W	Shape 1	265	235	200	60	32	10	5	2.0	300
800W	Shape 1	320	305	260	60	32	10	5	2.0	300
1000W	Shape 1	380	370	340	60	32	10	5	2.5	300
1500W	Shape 1	450	435	410	60	32	10	5	2.5	300
2000W	Shape 1	500	480	440	60	32	10	5	2.5	300
		A	B		C	D	F
3000W	Shape 2	400	380		50	107	30		2.5	350
3500W	Shape 2	450	430		50	107	30		2.5	350
4000W	Shape 2	450	430		50	107	30		2.5	350
5000W	Shape 2	520	500		50	107	30		6.0	350
6000W	Shape 2	600	580		50	107	30		6.0	350
7000W	Shape 2	600	580		50	107	30		6.0	350
